Balcrank Evolution Hose Reel for air, water, coolant and WW. 50' x 3/8" LP

USD $499.00

44-2140-008
Balcrank Corporation
Made In The USA
Click to see additional Options / Models / Accessories Available
Options
Product



Click to view California Proposition 65 warning



Lightweight but extremely rugged: steel pedestal and arm, and dual ball-bearings. The Evolution combines design, performance, and reliability with the right features and benefits for today's customers. All Evolution series reels have a narrow and lightweight design; includes hose, hose stop, and a 2.5f connecting hose. Air & Water Low Pressure 300 psi (21 bar) for delivery of air, water, and Anti-freeze. - Superb corrosion resistance - Superior structural design and stability - Fully ported shaft and pressure balanced swivel - High quality, long life power spring - Spool mounted on dual ball-bearings - Rectangular hose guide outlet with rollers - Multi-Positioning outlet arm



Features

  • Air & Water Low Pressure 300 psi (21 bar) for delivery of air, water, and Anti-freeze.
  • Eight-position latching mechanism.
  • Fluid compatibility for multiple applications.
  • Easy maintenance and service.
  • Easy on-site tension adjustment.
  • Easy installation mounting and accessories.
  • Fluid inlet - 1/" NPT (F) swivel.
  • Fluid outlet - 1/2" NPT (F) swivel.
  • Outlet thread - 1/4"NPT (M).
  • Wetted materials - Nickle plated steel and Buna-N™.



Technical

Weight approx. 44 lbs
Power supply Air V/Hz/A
Dimensions (L x W x H) 18 x 6-1/2 x 20 inch



Options

44-2140-011 Evolution Air/Water Reel - 50' x 1/2" $535.00 Cart Add to cart
44-2230-002 Mounting Channel I-Beam Bracket Kit $91.00 Cart Add to cart
44-2230-003 Mounting Channel - 1 Reel $95.00 Cart Add to cart
44-2230-004 Mounting Channel - 2 Reels $120.00 Cart Add to cart
44-2230-005 Mounting Channel - 3 Reels $152.00 Cart Add to cart
44-2230-007 Mounting Channel - 5 Reels $216.00 Cart Add to cart
44-2230-014 Mounting Channel Plate $48.00 Cart Add to cart

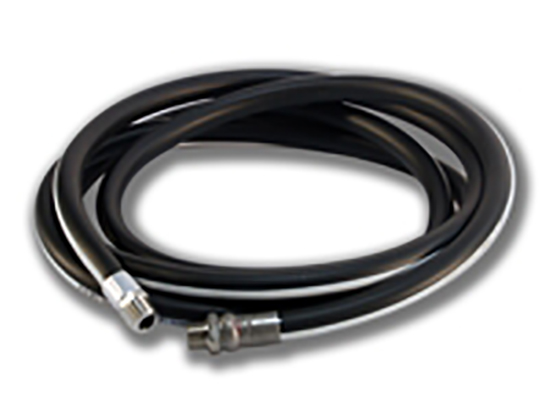

44-8136-050 Hose Assembly 50' x 3/8" Low Pressure $125.00 Cart Add to cart
